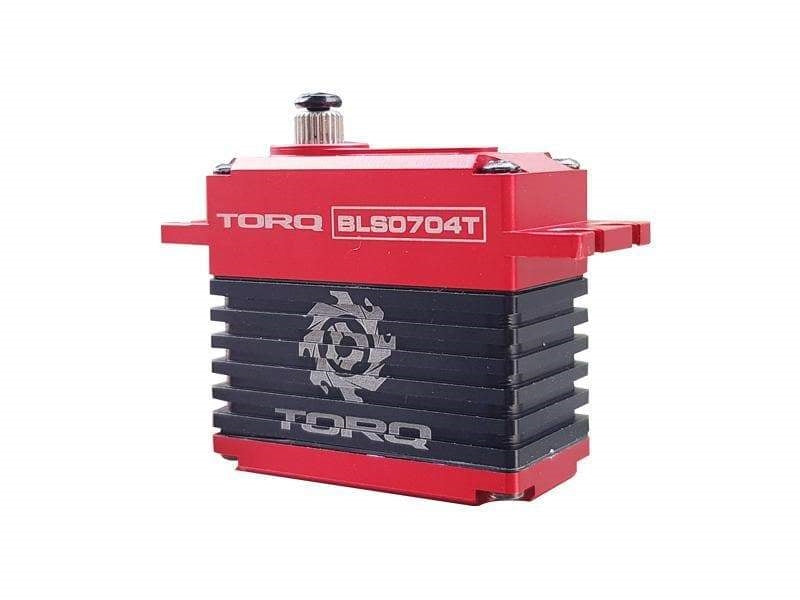

TORQ BLS0704T Full Size HV Brushless Rudder Servo

TORQ BLS0704T Full Size HV Brushless Rudder Servo.

Features:

- Brushless Motor Technology for the Ultimate Power & Control
- Blistering 0.035 Second Transit Speed
- Dedicated Helicopter Rudder Servo
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Fully Replaceable Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via Finned 6061 Aluminum Case
- 8.4V High Voltage Ready
- Optimized for High Demand Rudder Control
- Dual Ball Bearing Construction

Speed:
0.035 sec / 60° @ 8.4V
0.040 sec / 60° @ 7.4V
0.045 sec / 60° @ 6.0V

Torque:
8.0Kg.cm / 111.09 oz. in. @ 8.4V
7.0Kg.cm / 97.21 oz. in. @ 7.4V
6.0Kg.cm / 83.32 oz. in. @ 6.0V

Motor Type: Brushless

Servo Arm Type: Futaba

Working Pulse Width / Frequency: 760us / 560Hz

Weight: 78g

Dimensions: 40.5mm x 20mm x 37mm (LxWxH)

Voltage Range: 6.0V - 8.4V
